Wall – Mounted Cabinet – Model E



Wall-mounted cabinets are a cost-effective solution that is both aesthetically pleasing and durable.

Designed to be installed in data centres, equipment rooms and office environments to mount telecommunication, data communication, security, broadcasting and other electronic equipment.

Κατηγορίες: , ,
Construction Type Welded
Cable Entries Top and Bottom
Lockable Profiles Front Only
Mounting Profiles Front Only
Fan Cut-Outs Top Only
Model Colour Width (mm) Depth (mm) U size Height (mm)
E Black, Grey 600 300 4 280
E Black, Grey 600 450 4 280
E Black, Grey 570 300 6 370
E Black, Grey 570 450 6 370
E Black, Grey 570 600 6 370
E Black, Grey 570 300 9 500
E Black, Grey 570 450 9 500
E Black, Grey 570 600 9 500
E Black, Grey 570 300 12 635
E Black, Grey 570 450 12 635
E Black, Grey 570 600 12 635
E Black, Grey 570 300 15 770
E Black, Grey 570 450 15 770
E Black, Grey 570 600 15 700
E Black, Grey 570 300 18 900
E Black, Grey 570 450 18 900
E Black, Grey 570 600 18 900

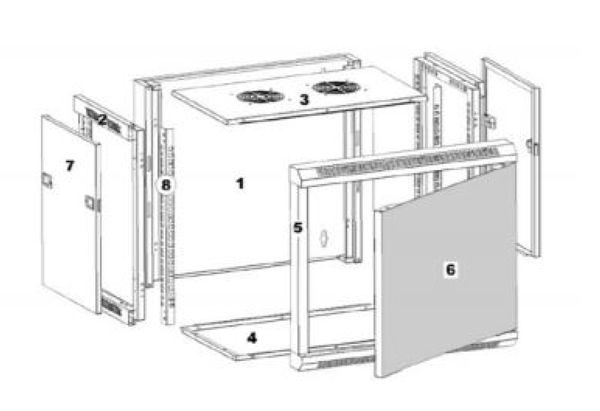

Part Material Surface
Top Panel SPCC Cold-Rolled Steel 1.0mm Powder coated
Frame SPCC Cold-Rolled Steel 1.0mm Powder coated
Front Door Toughened Glass 5mm/ SPCC Cold-Rolled Steel 1.2mm Powder coated
Side panel SPCC Cold-Rolled Steel 1.0 mm Powder coated
Back panel SPCC Cold-Rolled Steel 1.2 mm Powder coated
Bottom Panel SPCC Cold-Rolled Steel 1.0mm Powder coated
Mounting Bracket SPCC Cold-Rolled Steel 1.2mm Powder coated

Available Flat-Packed

30 Minutes Assembly

1 Person Assembly

Wall Mountable

IP20 Rated

Download Specifications PDF
