| Build Type | Bolted | ||
| Chassis Material | 1.2mm cold-rolled steel | ||
| Front Door Material | 5.0mm toughened glass | ||
| Cable Entries | 2 (1x top, 1x bottom) | ||
| Lockable Doors | Front and sides |
| Assembly | Ready-built or flat-packed | ||||
| Maximum Load Capacity | 60kgs UDL | ||||
| IP Rating | 20 | ||||
| Mounting Profiles | Front and rear | ||||
| Fan Cut-Outs | 2x 120mm |
| Capacity (U) | Height (mm) | Widths (mm) | Depths (mm) | Colours | |||||
| 4 | 285 | 600 | 300.450 | Black, Grey | |||||
| 6 | 370 | 600 | 300, 450, 600 | Black, Grey | |||||
| 9 | 500 | 600 | 300, 450, 600 | Black, Grey | |||||
| 15 | 770 | 600 | 300, 450, 600 | Black, Grey | |||||

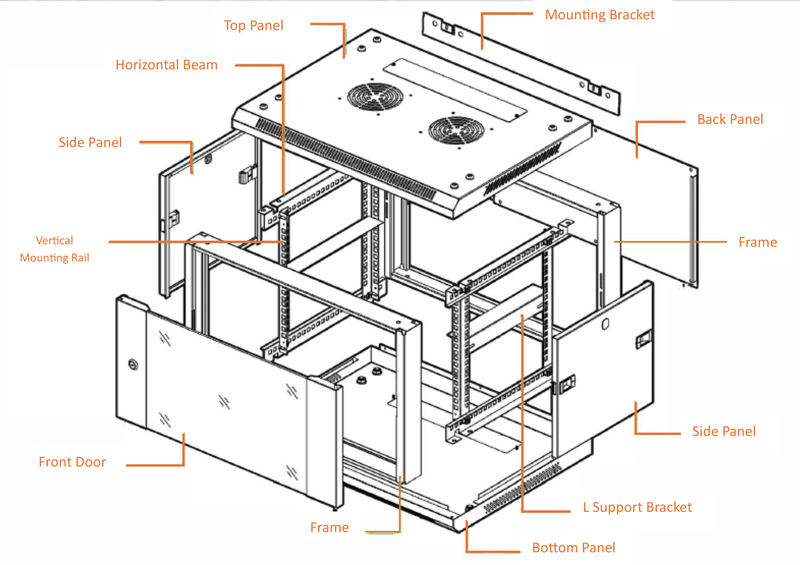

| Part | Material | Surface | ||||||||||||
| Top Panel | SPCC Cold-Rolled Steel 1.0mm | Powder Coated/Vented Front & Sides | ||||||||||||
| Frame | SPCC Cold-Rolled Steel 1.0mm | Powder Coated | ||||||||||||
| Front Door | Toughened Glass 5m/SPCC Cold-Rolled Steel 1.2mm | Powder Coated/Vented Front & Sides | ||||||||||||
| Side Panel | SPCC Cold-Rolled Steel 1.0mm | Powder Coated/Vented (Optional) | ||||||||||||
| Vertical Mounting Rail | SPCC Cold-Rolled Steel 1.2mm | Powder Coated | ||||||||||||
| L Support Bracket | SPCC Cold-Rolled Steel 1.0mm | Powder Coated | ||||||||||||
| Back Panel | SPCC Cold-Rolled Steel 1.2mm | Powder Coated | ||||||||||||
| Horizontal Beam | SPCC Cold-Rolled Steel 1.2mm | Powder Coated | ||||||||||||
| Bottom Panel | SPCC Cold-Rolled Steel 1.0mm | Powder Coated/Vented Front & Sides | ||||||||||||
| Mounting Bracket | SPCC Cold-Rolled Steel 1.0mm | Powder Coated | ||||||||||||
Available Ready Build
30 Minutes Assembly
1 Person Assembly
Available Flat Pack
60kg UDL Capacity
