Floor – Cabinet – Model E



19″ floor-standing cabinets and racks are a cost-effective solution that is both aesthetically pleasing and durable. Designed to be installed in data centres,equipment rooms and office environments to mount telecommunication, data communication, security, broadcasting and other electronic equipment.

Features & Benefits

  • Medium duty cabinet of durable modular construction
  • Various 200° swing doors available, including: glass, punched, double horizontal, double vertical
  • Lockable and removable side panels
  • Adjustable and lockable cable entries at the top and bottom
  • U-marked frames can be removed and adjusted to requirement
  • Mounts for hanging/suspending cabinet
  • Comes complete with fan tray with fans and earthing screws
  • Available in grey or black – other colours available upon request
  • Linkable cabinet
  • Various accessories available, including fan trays, PDUs, cable management panels and more
  • Maximum 1000kgs UDL loading capacity

Below we have our standard stock sizes for height, widths and depths, but we also offer custom-built cabinets. If you require a specification which is not specified, then contact us and we can assist you.

Κατηγορίες: , ,
Capacity U Height(mm) Widths(mm) Depths(mm) Colours
47 2220 600,8 600,800,1000 Black, Grey
42 1990 600,8 600,800,1000 Black, Grey
37 1760 600,8 600,800,1000 Black, Grey
Part Material Surface
Side panel SPCC t1.2 Powder coated
Rear door SPCC t1.2 Powder coated
Frame SPCC t1.5 Powder coated
Top cover SPCC t1.2 Powder coated
19’ rails SPCC t2.0 Powder coated
Cable management slot SPCC t1.0 Powder coated
Front door SPCC t1.2 Powder coated
Mounting plate SPCC t1.5 Powder coated
2’’ heavy duty castor — —
M12 adjustable feet — v
M6 screw & nuts Steel Colour zinc
Trox tooling Steel Colour zinc
Model Door options Front Door # Rear Door #
E Double High Density Punched front and single High density Punched Rear Door 5 6

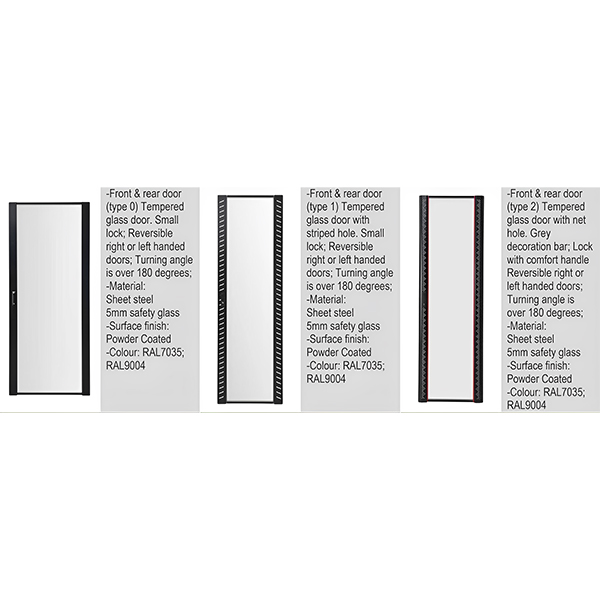

Type: 0 – 1 – 2

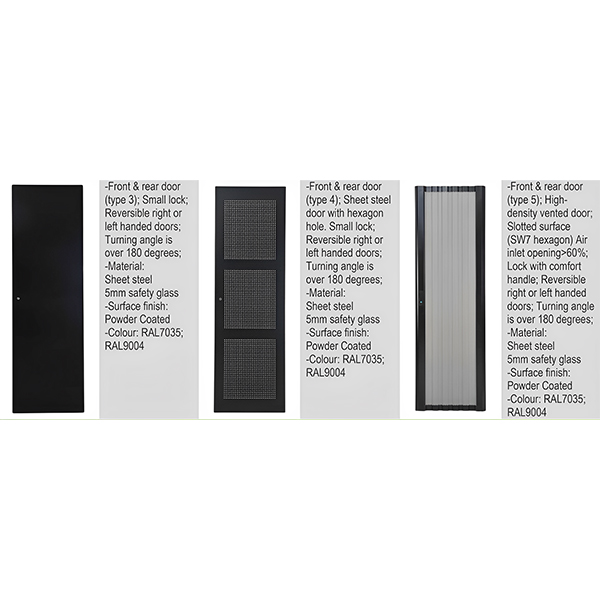

Type: 3 – 4 – 5

IP Rating Available

30 Minutes Assembly

2 Persons Assembly

Available Ready Build

Available Flat-Packed

1000kgr UDL Capacity

Download Specifications PDF
