Floor – Cabinet – Model C



19″ floor-standing cabinets and racks are a cost-effective solution that is both aesthetically pleasing and durable. Designed to be installed in data centres,equipment rooms and office environments to mount telecommunication, data communication, security, broadcasting and other electronic equipment.

Features & Benefits

  • Medium duty cabinet of durable modular construction
  • Various 200° swing doors available, including: glass, punched, double horizontal, double vertical
  • Lockable and removable side panels
  • Adjustable and lockable cable entries at the top and bottom
  • U-marked frames can be removed and adjusted to requirement
  • Fully customisable to requirement
  • Comes complete with fan tray with fans and earthing screws
  • Available in grey or black – other colours available upon request
  • Tool-free changing of front and rear door orientation
  • Various accessories available, including fan trays, PDUs, cable management panels and more
  • Maximum 800kgs UDL loading capacity



Below we have our standard stock sizes for height, widths and depths, but we also offer custom-built cabinets. If you require a specification which is not specified, then contact us and we can assist you.

Κατηγορίες: , ,
Capacity U Height(mm) Widths(mm) Depths(mm) Colours
15 800 600 600, 800 Black, Grey
20 1000 600 600, 800 Black, Grey
24 1200 600 600, 800 Black, Grey
29 1400 600 600, 800 Black, Grey
33 1600 600 600, 800 Black, Grey
38 1800 600, 800 600,800,960,1000,1200 Black, Grey
42 2000 600, 800 600,800,960,1000,1200 Black, Grey
47 2220 600, 800 600,800,960,1000,1200 Black, Grey
Part Material Surface
Rear door —- —-
Side panels SPCC t1.0 Powder coated
19’ rails SPCC t2.0 Zinc-plated
Mounting angle SPCC t1.2 Powder coated
Top cover SPCC t1.2 Powder coated
Frame SPCC t1.2 Powder coated
Cable management slot SPCC t1.0 Powder coated
Front door — —
Mounting spacer SPCC t1.2 Zinc-plated
Bottom SPCC t1.2 Powder coated
Cable Entry Panel SPCC t1.2 Powder coated
2’’ heavy duty castor — —
Hardware kits with cabinet
M12 adjustable feet Steel Zinc-plated
M6 screw & nuts Steel Zinc-plated
Trox tooling Steel Zinc-plated
Model Door options Front Door # Rear Door #
C1 Front Glass Door with No Vents and Glass Rear Door with Hole Vents 0 3
C2 Front Glass Door with Strip Vents and Glass Rear Door with Hole Vents 1 3
C3 Front Glass Door with Hole Vents and Glass Rear Door with Hole Vents 2 3
C4 Front Solid Door and Solid Rear Door 3 3
C5 Front Low Density 3 Section Punched Door and Solid Rear Door 4 3
C6 Front High Density Punched Doors and Solid Rear Door 5 3

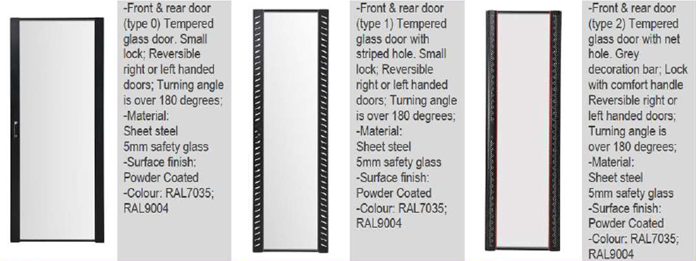

Type: 0 – 1 – 2

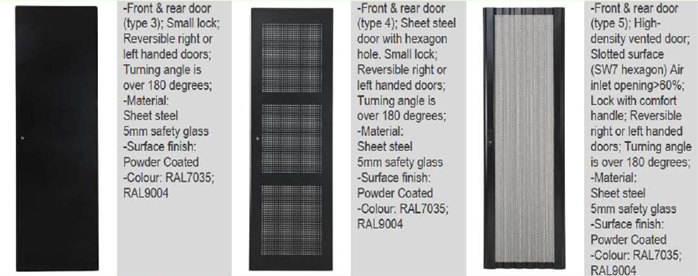

Type: 3 – 4 – 5

IP Rating Available

30 Minutes Assembly

2 Persons Assembly

Available Ready Build

Available Flat-Packed

800kgr UDL Capacity

Download Specifications PDF
